Double flange type clutch & brake unit

Type:EUDF (0.6~20kgfm)

Advantages :‧ Dust-proof, leak-proof and high-radiator design, light weight solid structure; easy to assemble from                       different positions.
                     ‧ Air GAP adjustment, when surface close the effective friction life, can be adjust on line no need to                       exchange.

Specification

Model 0.6 1.5 2.5 5 10 20
Torque 動(Td) 靜(Ts) 動(Td) 靜(Ts) 動(Td) 靜(Ts) 動(Td) 靜(Ts) 動(Td) 靜(Ts) 動(Td) 靜(Ts)
(N·m) 5 5.5 10 11 20 22 40 45 80 90 160 175
(kgf·m) 0.5 0.55 1.0 1.1 2.0 2.2 4.0 4.5 8.0 9.0 16.0 17.5
Voltage (DC-V) 24 24 24 24 24 24
Coil(20°C) (W) 11 15 20 25 35 45
(A) 0.46 0.63 0.83 1.09 1.46 1.88
Maximum speed(r/min)
8000 6000 5000 4000 3000 2500
Moment of inertia J(kg·m²) 1.28×10-4 3.70×10-4 1.40×10-3 3.85×10-3 1.35×10-2 4.08×10-2
GD²(kgf·m²) 5.10×10-4 1.48×10-3 5.58×10-3 1.54×10-2 5.41×10-2 1.63×10-1
Weight(kg) 2.1 4.2 6.8 12 22 55.5

EUDF Double Flange type clutch ‧ brake unit

Model 0.6 1.5 2.5 5 10 20
Body B 95 95 110 110 130 130 180 230
D 140 140 160 160 200 200 250 300
F 70.5 84 101 117 145 177
L 129 158 178 210 276 320
m M8 M8 M8 M10 M10 M12 M12
N 3 3 3.5 3.5 3.5 4 4
V M4×0.7深8 M4×0.7深8 M6×1.0深11 M6×1.0深11 M6×1.0深11 M10×1.5深17
V2 115 115 130 130 165 165 215 265
Z 10 10 10 12 12 15 15
Shaft Q 23 23 30 30 40 40 50 60 80
S 11 11 14 14 19 19 24 28 38
S1 11 11 14 14 19 19 24 28 38
U 12.5 12.5 16 16 21.5 21.5 27 31 41
U1 12.5 12.5 16 16 21.5 21.5 27 31 41
W 4 4 5 5 6 6 8 8 10
W1 4 4 5 5 6 6 8 8 10
配合電機(4P) 1/4 HP 1/4~1/2 HP 1/2~1 HP 1~2 HP 3~5 HP 7.5~10 HP

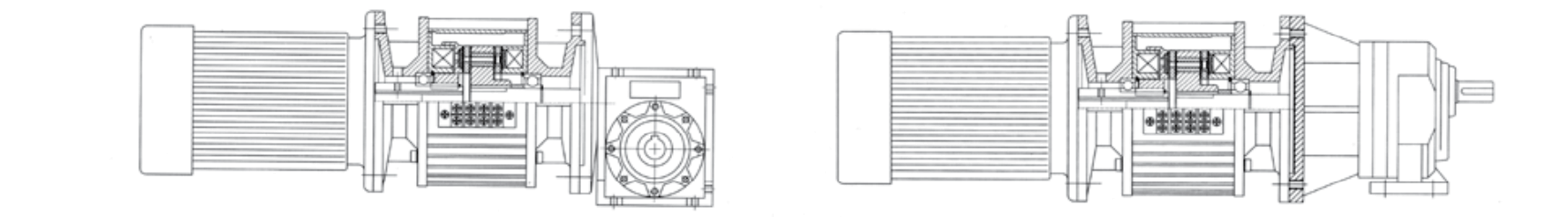

Apply Paradiam
